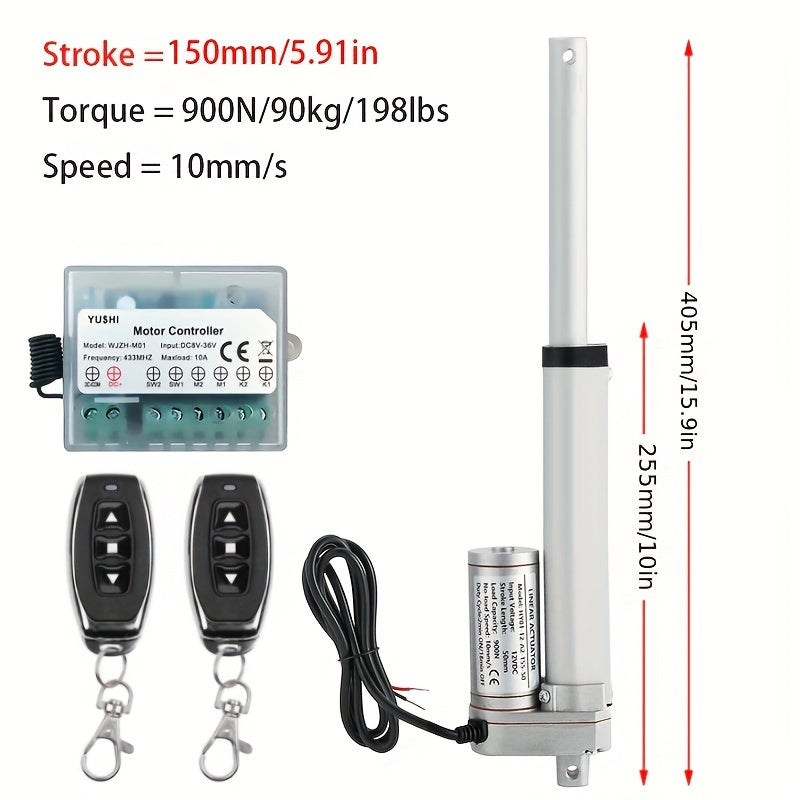

12V DC Linear Actuator with Controller 900N Max Load 10mm/s Stroke 50-300mm

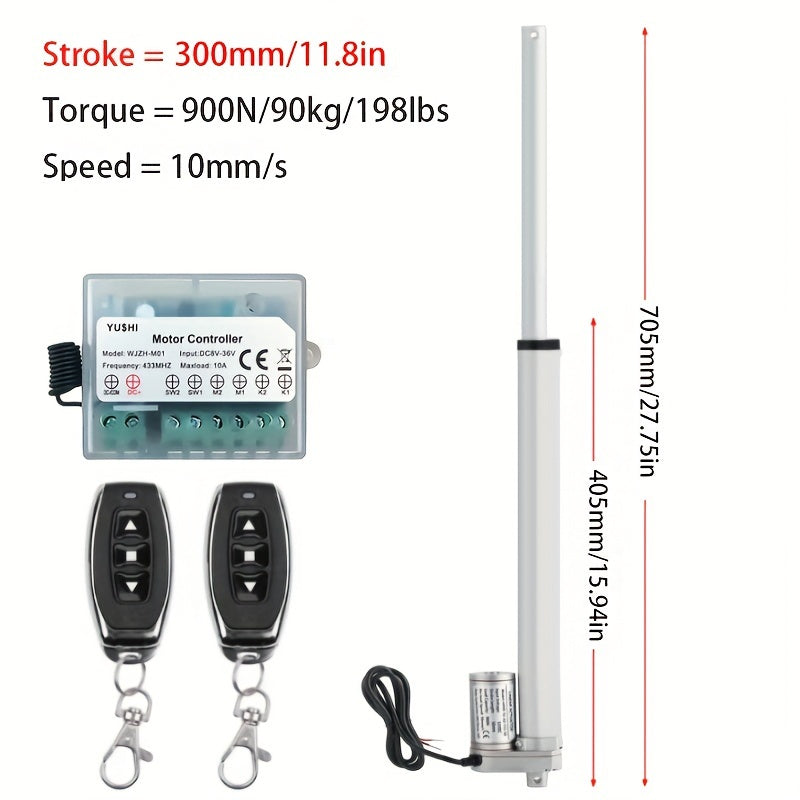

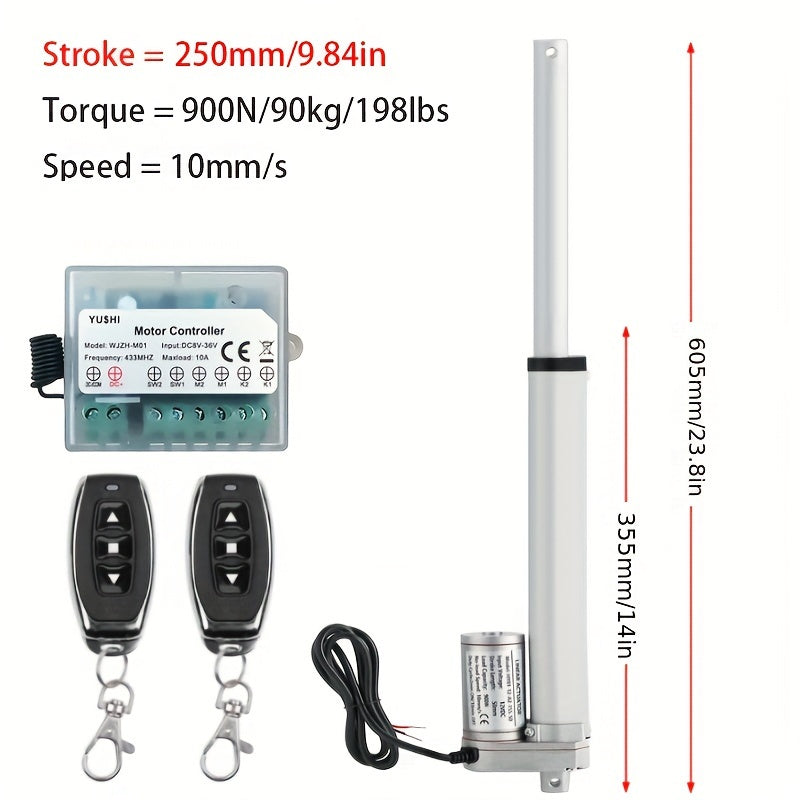

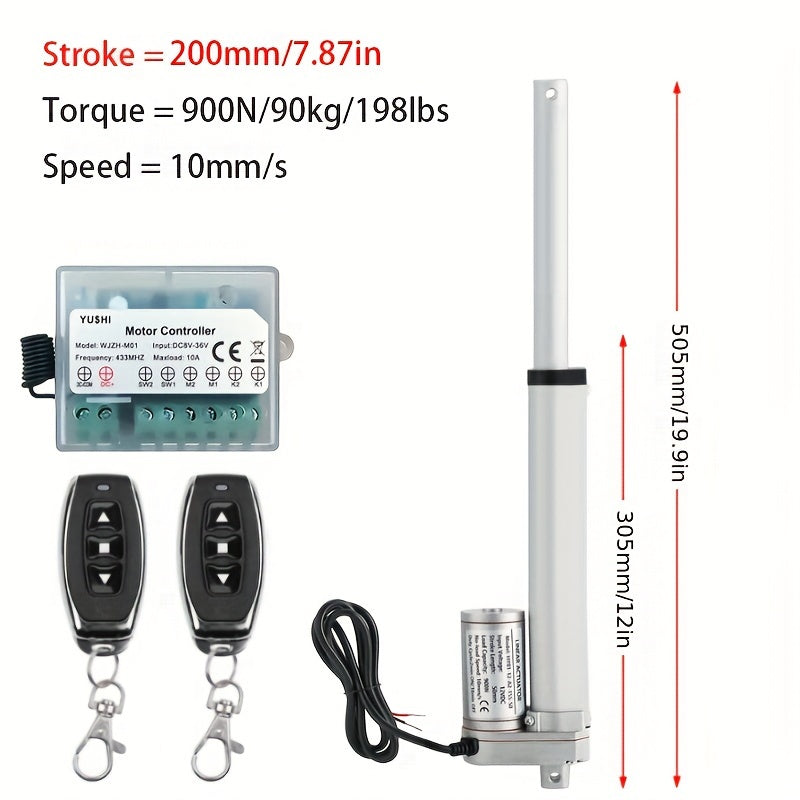

One piece of DC 12V linear actuator with controller available in various stroke lengths including 50mm, 100mm, 150mm, 200mm, 250mm, and 300mm. This electric motor drive operates at a speed of 10mm/s, providing a maximum force of 900N.

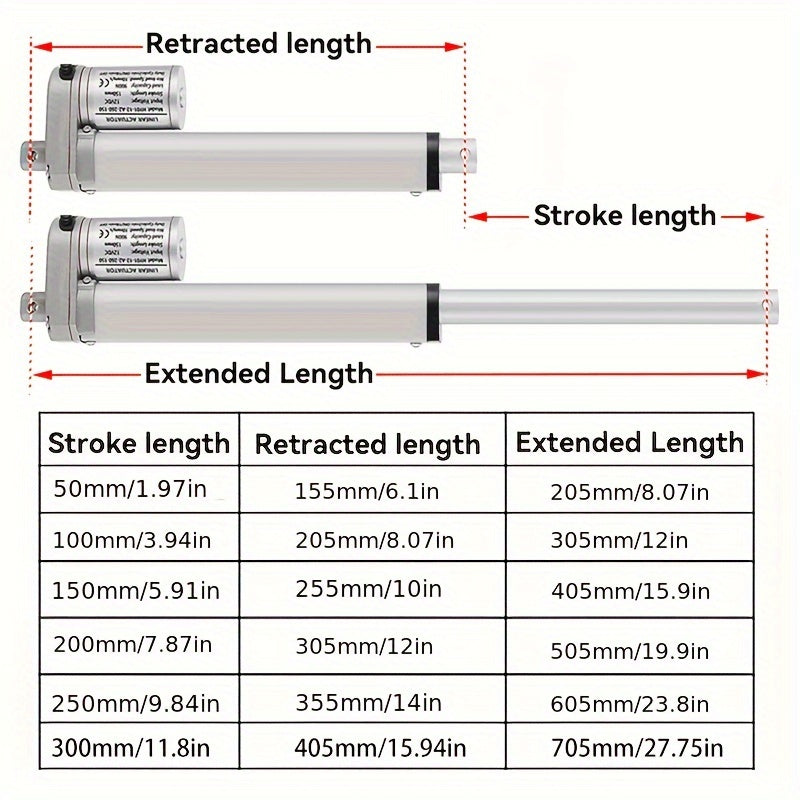

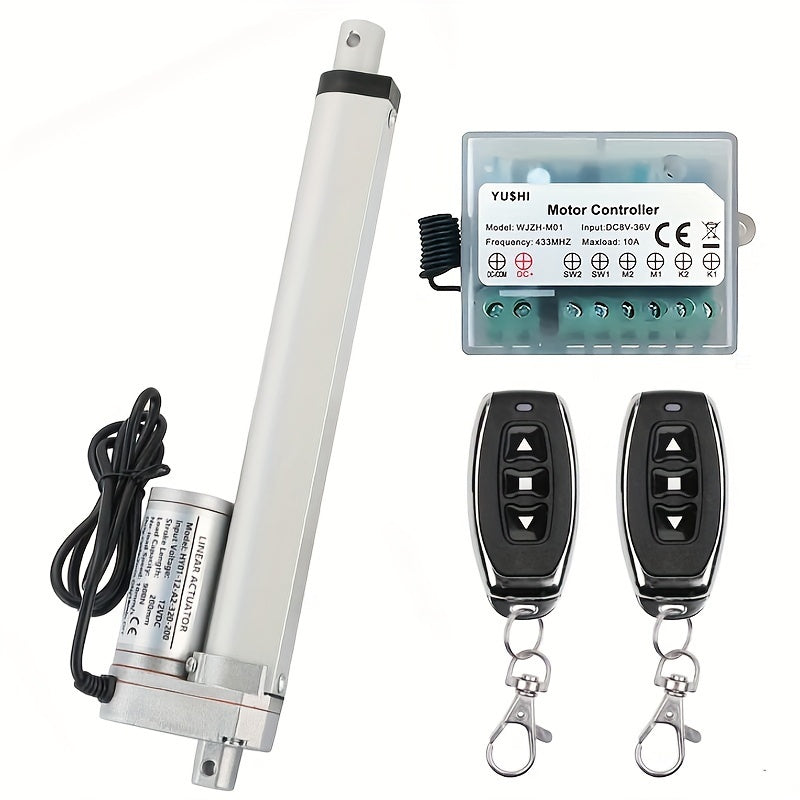

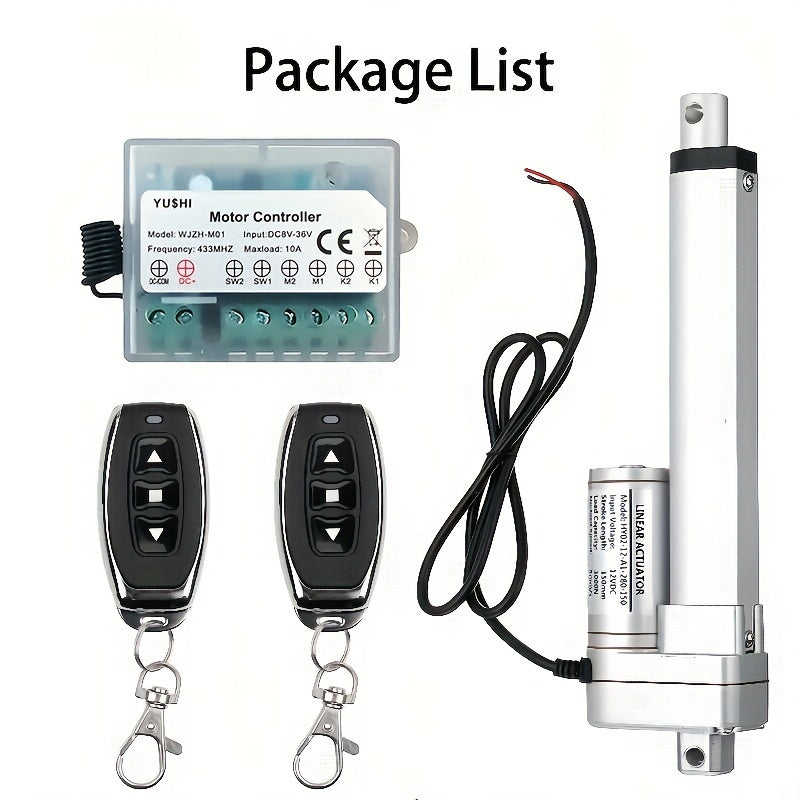

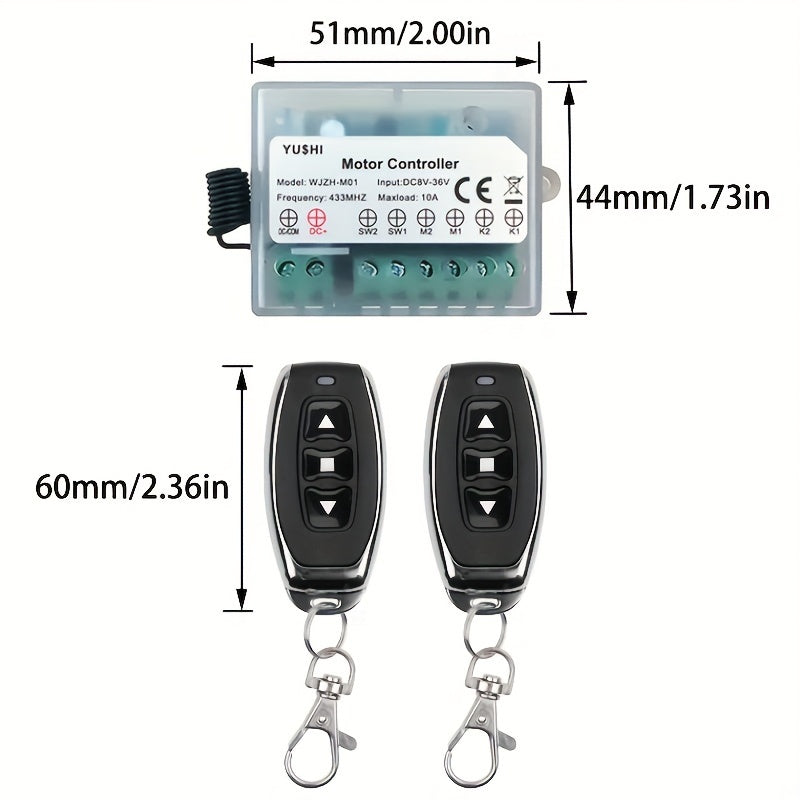

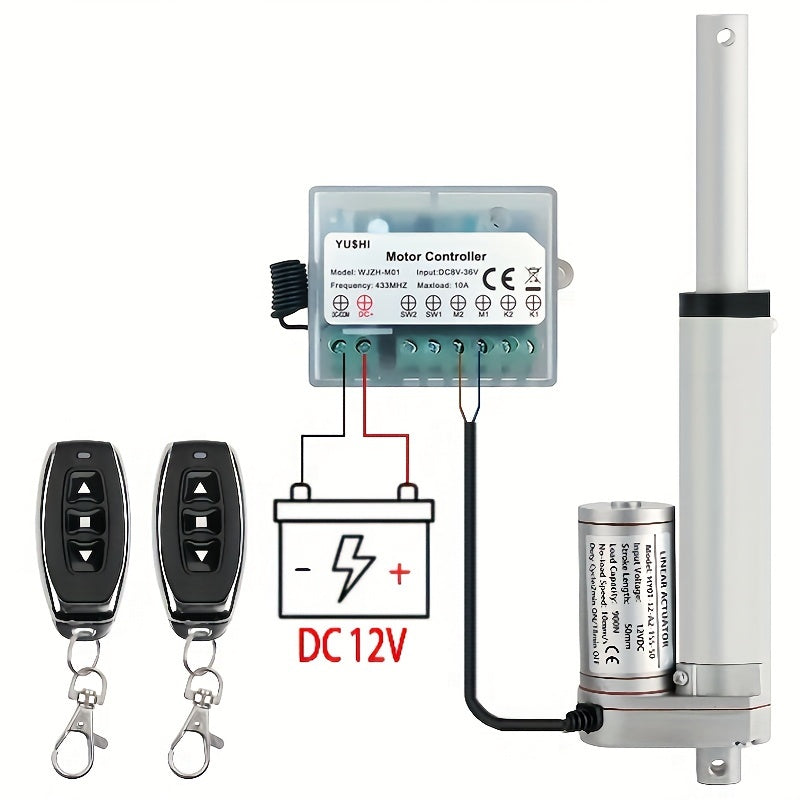

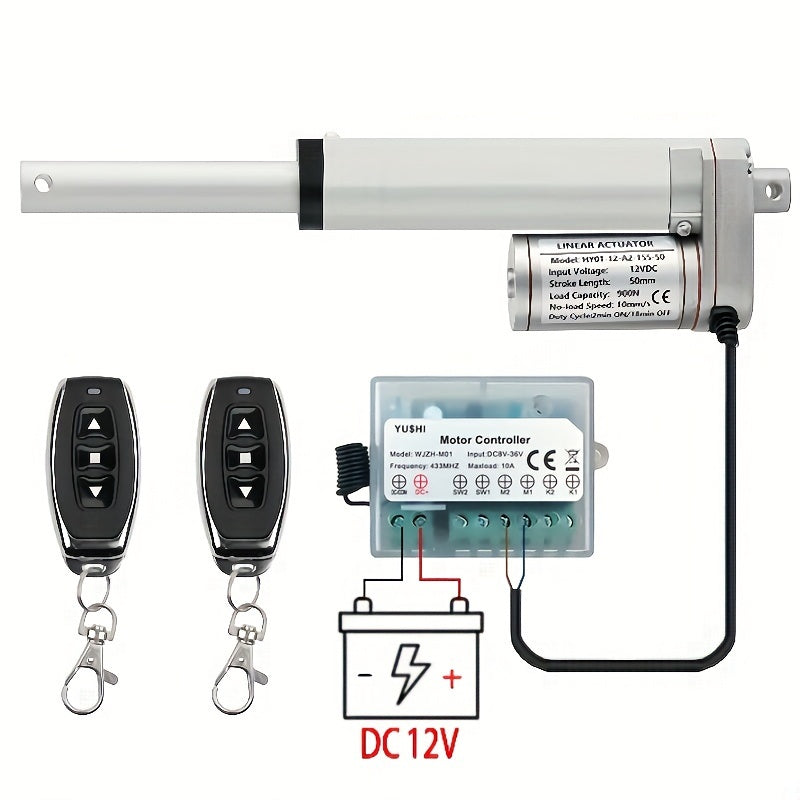

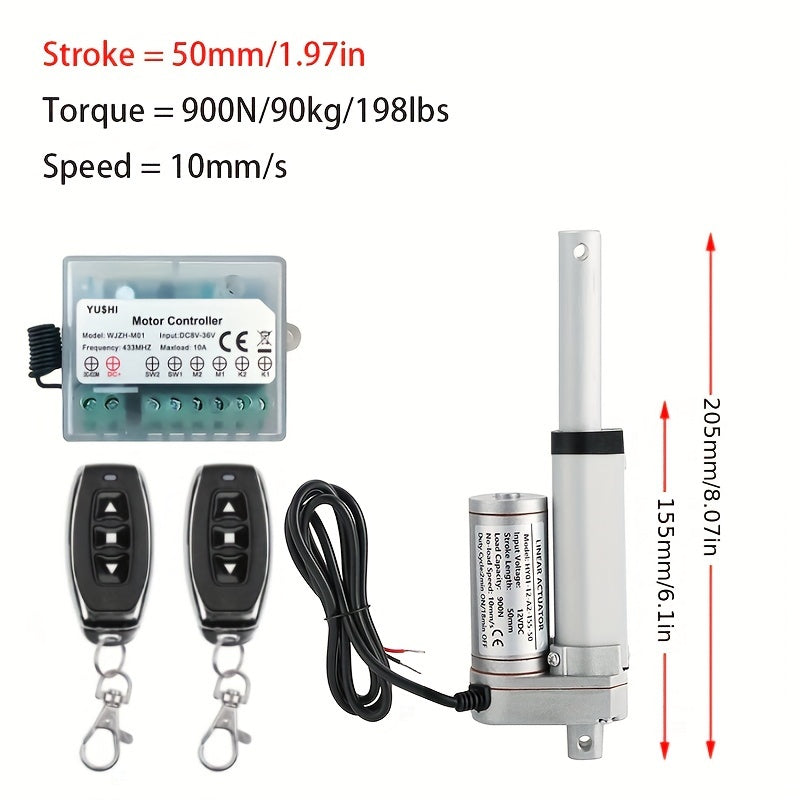

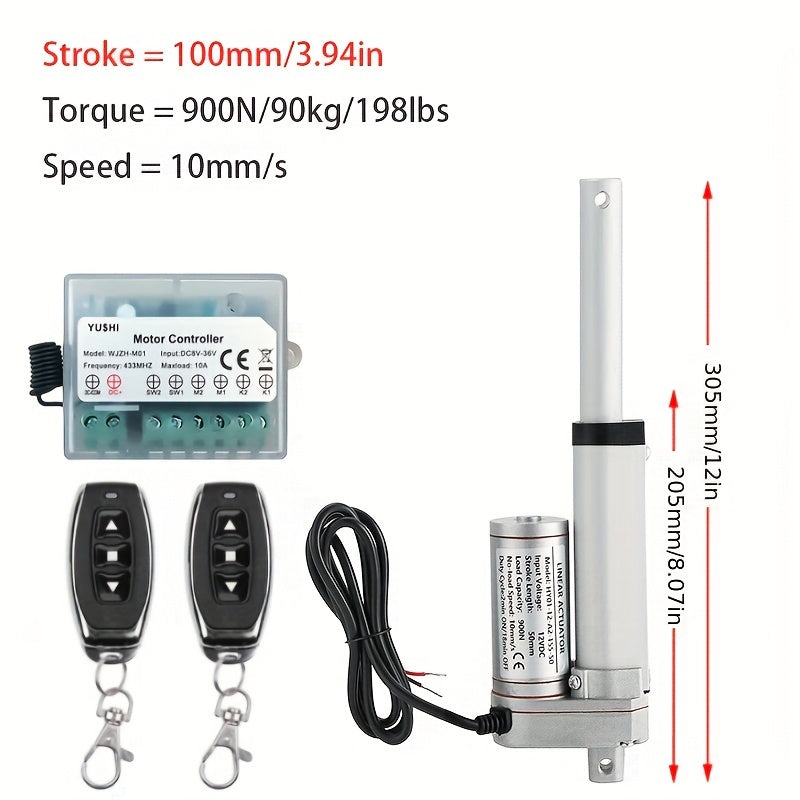

Linear Actuator Parameters: Input voltage: DC 12V Load current: 2.5A Max Load: 900N = 90KG = 198LBS Speed: 10mm/s Material: Aluminum alloy Built-in limit switches Control Module: Rated voltage: DC 8-36V Rated current: 10A Working frequency: RF433 MHz Coding method: learning type Working mode: Jog mode / interlock mode Package Included: 1pc Linear Actuator 1pc Control system (including 1pc Receiver, 2pcs Remote Control)Linear actuator stroke length:Wiring diagram: The input voltage of the control system is 12V, please connect a voltage of 12V. Do not connect 220V voltage (which may cause the controller to burn out).Two control modes: jog mode (default) and interlock mode 1. Jog mode (default): Press and hold the ▲ button on the remote control, and the linear actuator will extend forward. After releasing the button, the linear actuator will stop. Press and hold the ▼ button on the remote control, and the linear actuator will retract. After releasing the button, the linear actuator will stop.2. Interlock mode: Press the ▲ button on the remote control once, and the linear actuator will extend forward. Press the ■ button on the remote control, and the linear actuator will stop. Press remote control ▼ to retract the linear actuator, then press remote control ■ to stop the linear actuator.If you need to use Interlock Mode, first, on the controller's motherboard. Weld the "MD" together. Secondly, change the remote control pairing type to Interlock Mode pairing mode. This way, you can use the Interlock working mode.Remote control pairing learning method:1. Jog Mode: Press the learning button on the remote control once, the learning indicator will flash once and then light up, press the ▲ button of the remote controller to be paired to learn again, the learning indicator will flash three times and then light up, press the ▼ button of the remote controller again, The learning indicator flashes three times and then goes off, and the learning is successful.2. Interlock Mode: Press the learning button on the controller twice continuously, the learning indicator will flash, and then press the remote control ▲ button, the learning indicator flashes three times and then lights up, press the remote control ■ button, the learning indicator flashes lights up after three times, press the remote control ▼ button, the learning indicator flashes three times and then goes out, the learning is successful.
